Shunt reactors are vital for modern power systems, providing essential reactive power compensation, stabilizing grid voltage, and preventing overvoltage on long transmission lines to ensure reliable, efficient electricity. Selecting the right equipment is critical, yet many procurement decisions focus solely on the initial purchase price, overlooking the true financial commitment. Astute grid operators understand selection must go beyond the initial quote, seeking long-term value over low upfront cost from a shunt reactor supplier. The real cost, or Total Cost of Ownership (TCO), spans the reactor's entire 10-30 year operational life, encompassing purchase, installation, energy losses, maintenance, potential downtime, and decommissioning.This article delves into a comprehensive 10-year life cycle cost analysis. By comparing two distinct product types from leading shunt reactor manufacturers, we will illustrate why a long-term perspective is crucial and how making a well-informed choice can lead to substantial savings and enhanced operational reliability.
Table of contents:
A Look at Two Representative Market Offerings
The Key Components of Life Cycle Cost
Dimension One: Initial Investment vs. Long-Term Running Costs
Dimension Two: The Staggering Cost of Energy Losses
Dimension Three: Maintenance, Downtime, and Service Costs
Dimension Four: Lifespan, Reliability, and End-of-Life Value
Dimension Five: The Hidden Costs of Environment and Safety
Frequently Asked Questions (FAQ) for Shunt Reactor Procurement
To understand the spectrum of available technology, let's examine two distinct products from established companies in the market.

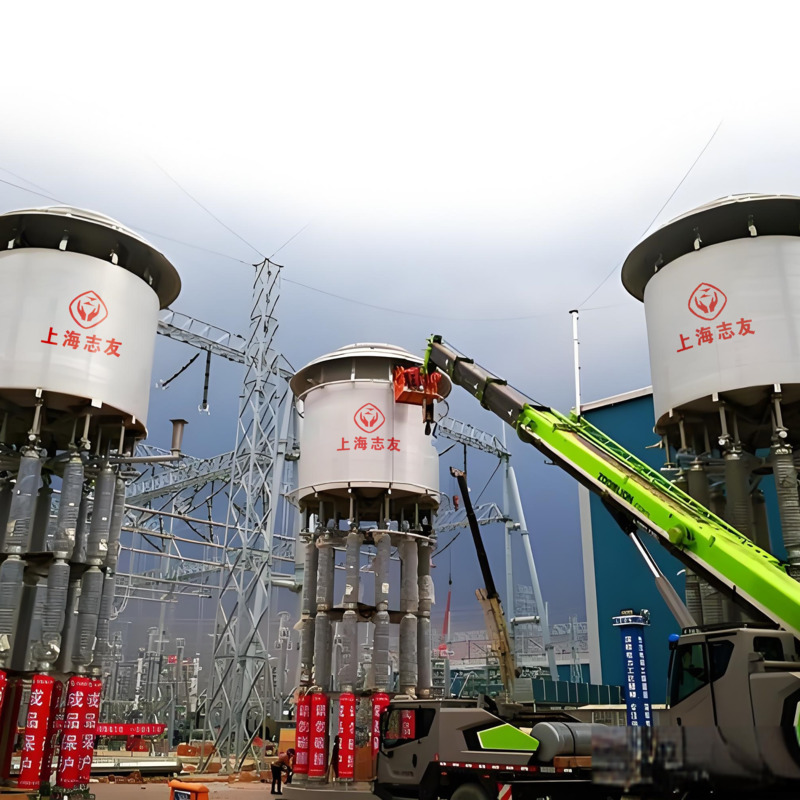

2.1 Brand A: Shanghai Powers – The Dry-Type Specialist
https://www.shanghaipowers.com/

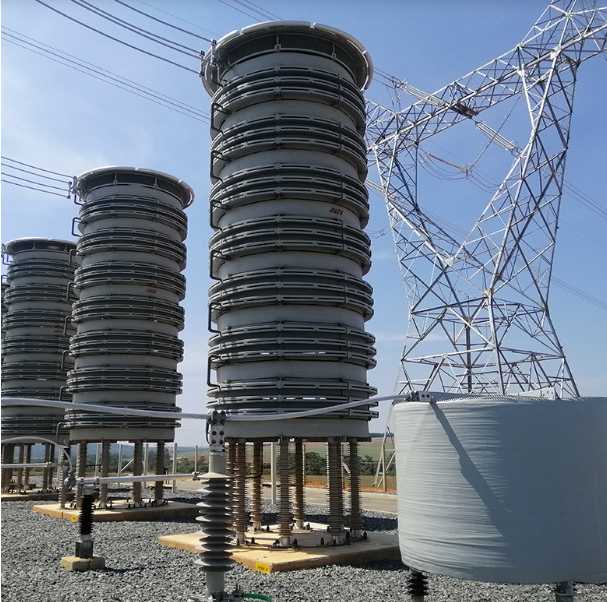

2.2 Brand B: DKNC – The High-Voltage Innovator
A shunt reactor's price tag is just the beginning. The true 10-year cost is a sum of three distinct phases:
Industry research underscores the significance of OPEX. Technical publications on loss capitalization show that the capitalized cost of electrical losses for transformers and reactors can range from a few thousand to over fifteen thousand dollars per kilowatt. Over a decade, this can easily surpass the initial purchase price.
A simpler, conventional design often costs less upfront than a highly engineered, low-loss model. For instance, Brand A's dry-type reactor may need less site preparation, while Brand B's lightweight design reduces transportation and crane costs.
However, a lower initial investment can be offset by higher long-term costs. Units with high energy losses or frequent maintenance lead to larger electricity bills and increased labor/parts expenses. Dry-type reactors, for example, have minimal maintenance and long service lives, lowering total cost of ownership despite competitive upfront prices.
ZHIYOU's design philosophy addresses this by balancing initial cost with long-term operational efficiency. Our products are engineered for low losses and minimal maintenance, ensuring an affordable start and sustainable future for our customers.
Energy losses are the silent cost that never sleeps. Every shunt reactor has two types of losses:
Reports from major energy equipment firms show the capitalized cost of these losses can be €8,000 to €17,000/kW. For a reactor with just 50 kW of total losses, this translates to €400,000 to €850,000 over its lifetime. Design and materials directly impact these losses. Core material, winding quality, and geometric design create significant efficiency differences. For example, a dry-type air-core design (like Brand A) has no core losses but higher winding losses, unlike traditional iron-core designs. The most efficient designs minimize both. ZHIYOU heavily emphasizes loss reduction. Using high-grade conductor materials, optimized winding configurations, and advanced modeling, our shunt reactors are engineered for maximum efficiency, delivering tangible, long-term savings on your electricity bill.
Maintenance is not just about the cost of a technician and a spare part; it is primarily about the cost of downtime. For a utility, taking a key line out of service can have cascading effects on grid stability and market operations. For an industrial plant, it can mean a complete production halt.
Here, design differences become stark. A dry-type, oil-free reactor (Brand A) eliminates a whole category of maintenance: oil sampling, testing for dissolved gases, oil filtering, and managing potential leaks. Trench Group and other industry experts consistently highlight that these designs require little more than periodic visual inspections and cleaning, dramatically reducing maintenance labor and system downtime.
ZHIYOU advances this concept further. Our designs prioritize reliability and serviceability. By using high-quality components and a robust construction, we minimize the probability of failure. Furthermore, our modular designs and responsive global service network ensure that if maintenance is needed, it can be performed quickly and efficiently, getting your system back online with minimal disruption.
A 10-year analysis requires considering if the equipment will even last that long without a major failure or overhaul. The primary life-limiting factor in any reactor is the integrity of its insulation system. ResearchGate studies and industry failure analyses point to insulation aging and winding failures as the leading causes of premature retirement.
A reactor built with superior materials, robust insulation, and a design that effectively manages thermal and mechanical stresses will have a longer, more reliable operational life. This defers the massive capital expenditure of a replacement. Furthermore, at the end of its life, a well-designed unit made from high-quality copper or aluminum has a higher residual scrap value, offsetting decommissioning costs.
ZHIYOU's commitment to quality is reflected in our design standards, which often exceed international requirements. We focus on insulation system integrity and structural robustness to guarantee a long and predictable service life, ensuring your investment is secure for well beyond a decade.
Safety and environmental compliance come with a real price tag. Oil-immersed reactors, common in high-voltage applications, require significant auxiliary infrastructure. This includes:
Dry-type designs (Brand A) completely avoid these costs. Their inherent safety makes them suitable for installation closer to loads, such as inside buildings or in dense urban areas, reducing the need for long cable runs and further saving costs.
ZHIYOU provides a range of solutions, including advanced dry-type reactors and units using biodegradable ester fluids, that minimize environmental impact and eliminate these associated costs. Our designs prioritize safety, offering low-noise, compact, and fire-retardant options that reduce your facility's overall risk profile and compliance burden.
Selecting a shunt reactor is a long-term strategic investment in the health and efficiency of your power system. The initial quotation is merely the first chapter of a long story. The real narrative is written in the years of operational performance, where energy efficiency, unwavering reliability, and minimal maintenance truly define the value of your asset. By shifting the focus from the price tag to the 10-year life cycle cost, you empower yourself to make a decision that pays dividends for years to come. For a partner dedicated to delivering this long-term value through superior engineering and lifecycle support, consider the solutions offered by ZHIYOU.
